Home / Products / Glue Laminated Timber / Glulam Beam and Post / Pine Glulam Beam and Post
  • Pine Glulam Beam and Post
  • Pine Glulam Beam and Post
  • Pine Glulam Beam and Post
  • Pine Glulam Beam and Post
  • Pine Glulam Beam and Post
  • Pine Glulam Beam and Post
  • Pine Glulam Beam and Post
  • Pine Glulam Beam and Post
  • Pine Glulam Beam and Post
  • Pine Glulam Beam and Post

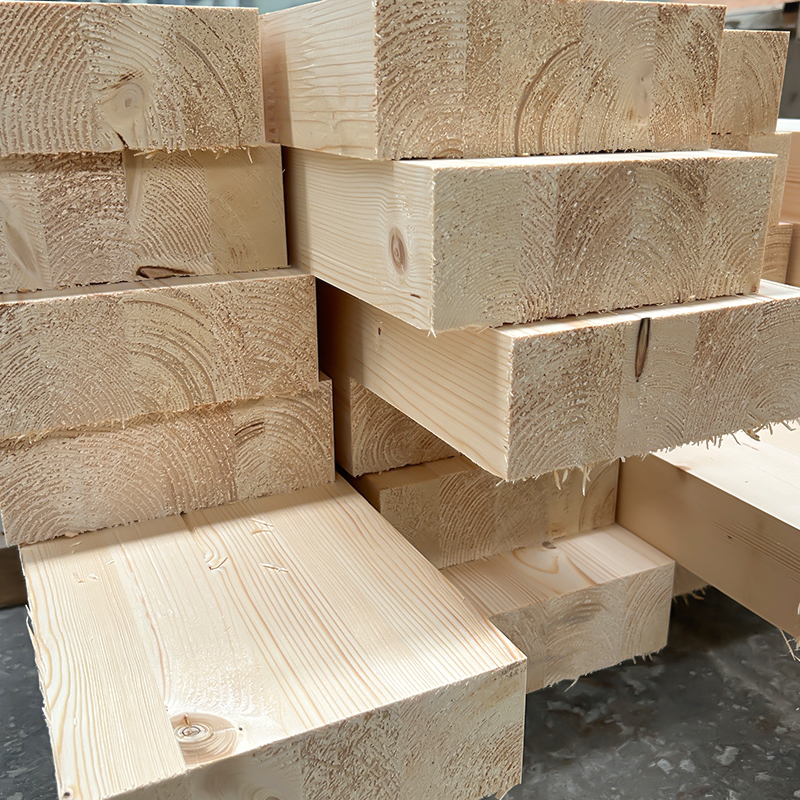

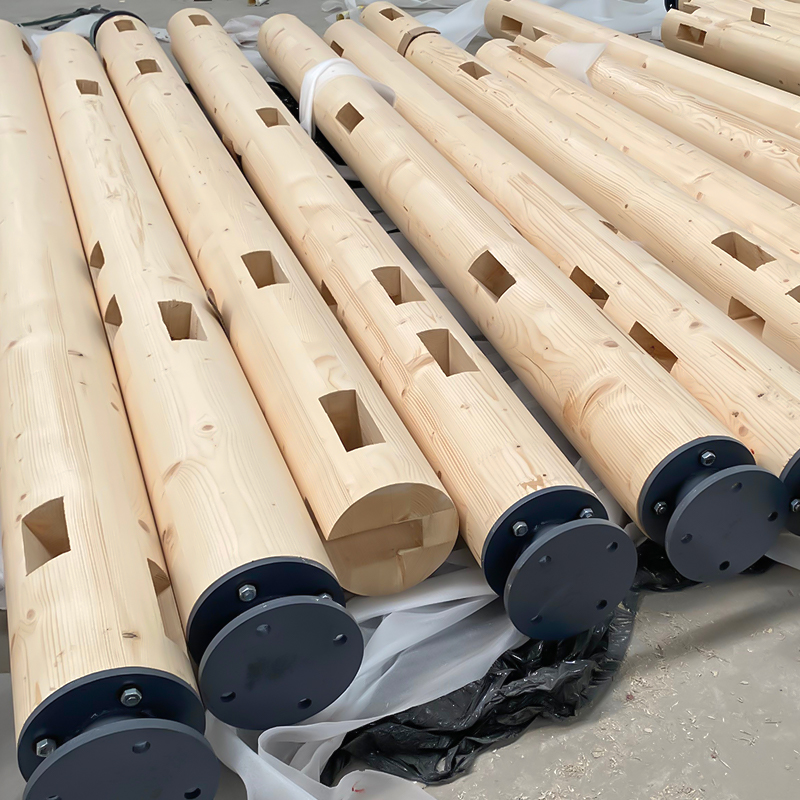

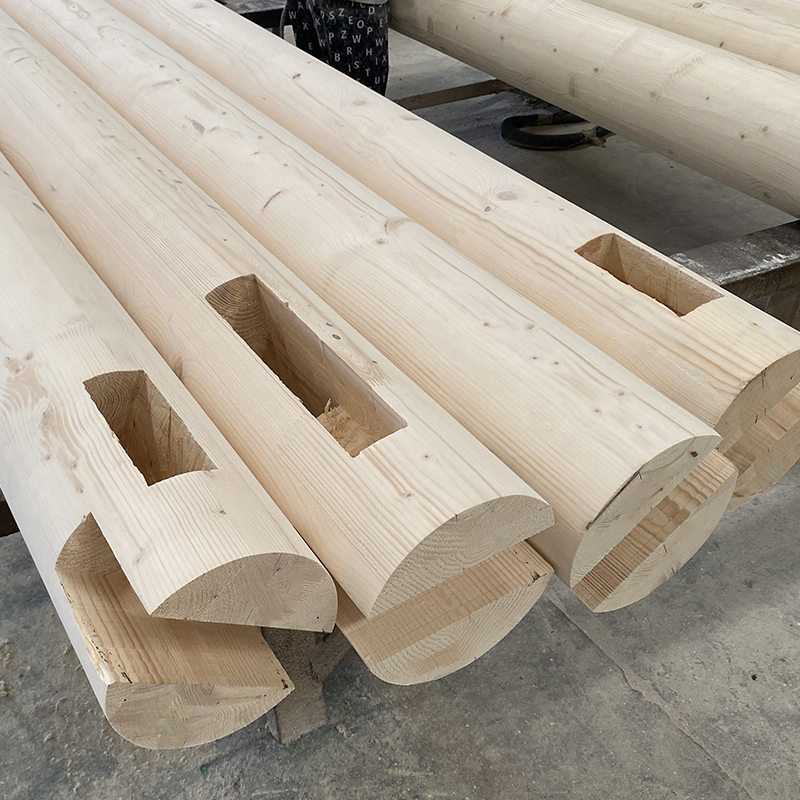

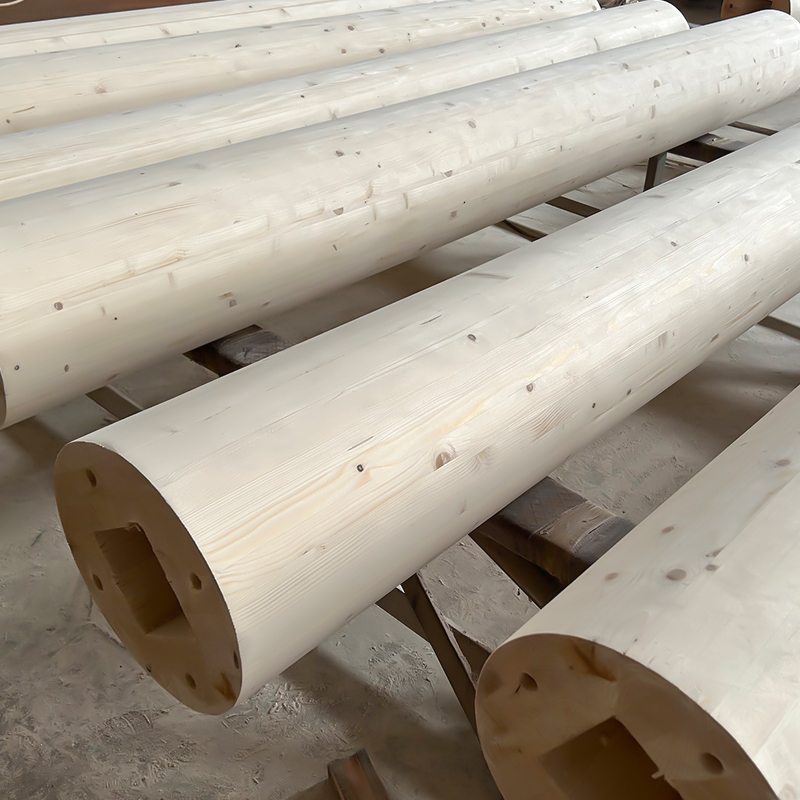

Pine Glulam Beam and Post

Product Description

Pine glulam is an engineered wood product made by bonding layers of pine lumber with strong adhesives to form beams, columns, and structural components. It combines the natural beauty of pine with enhanced strength, stability, and versatility, making it ideal for both residential and commercial construction.

Key Characteristics

Key Characteristics
•Species: Pine
•Density: 400–500 kg/m³ — lightweight with good strength
•Appearance: Light color, smooth grain, suitable for exposed finishes
•Workability: Easy to cut, shape, and machine
•Durability: Suitable for indoor use and treated outdoor applications
•Thermal Performance: Good insulation properties
•Sustainability: Renewable and often sourced from responsibly managed forests

Common Applications

Common Applications
•Roof beams and floor joists
•Columns and structural frames
•Decorative exposed timber
•Prefabricated building components
•Curved or custom-shaped elements

Additional Instruction

Pine glulam is a versatile, cost-effective choice for modern construction, offering both performance and aesthetic appeal.

Product Parameters
Surfaces S4S
Dimensions •Widths:up to 1300mm
•Heights: up to 600mm
•Lengths: up to 28m
•available on request: block glued glulam, glulam with large finger joints and special shapes requiring CNC machining
Bonding Adhesive based on  polyurethane(PU), approved for bonding loadbearing and non-loadbearing timber components, both indoors and outdoors
Moisture content 12%±2.5%
Strength classes • GL24c
• GL24h
• GL28c
• GL28h
• GL30c
• GL30h
• GL32 (on request)
